STERIFILL

Name: STERIFILL
Brand: IMA LIFE

Aseptic Filling

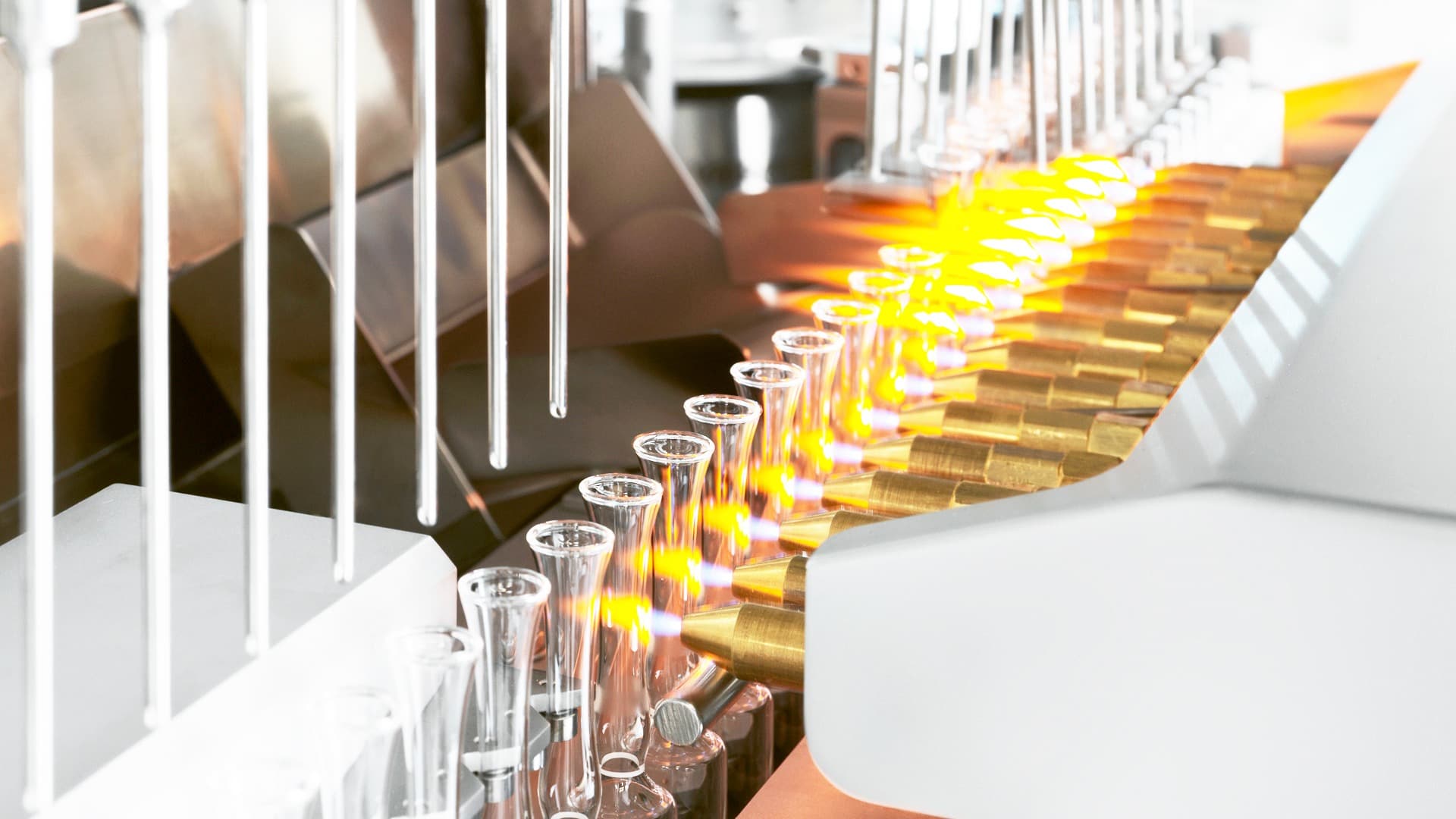

Linear filling and sealing for open or closed ampoules. STERIFILL offers a compact, accessible layout with configurations for medium to high production rates.

Enquire

Designed around your process

Aseptic Filling

The series uses motor-controlled movements and can be fitted with up to ten dosing pumps. It is available as a standalone machine or integrated into a processing line, with barrier-system and cleaning options. COMBI models can alternate between ampoules and vials.

Tailored to your application

Technology with local support

From choosing the right configuration to coordinating a quotation, the EZ GMP automation team connects your production requirements with the appropriate manufacturer specialists.

Tell us about your product, batch size, packaging format and facility. We’ll help define the next steps for your project in Vietnam.

STERIFILL — Highlights

Suitable for open type B/C and closed type D ampoules.

Tool-free size changes support efficient batch preparation.

CIP/SIP options reduce manual disassembly.

COMBI versions add vial-processing flexibility.

Technical information

Swipe the table to compare models

STERIFILL — Specifications
TECHNICAL DATA STERIFILL
Model	STERIFILL B4	STERIFILL B4 COMBI	STERIFILL B6	STERIFILL B6 COMBI	STERIFILL B8	STERIFILL B8 COMBI	STERIFILL B10	STERIFILL B10 COMBI
Output – ampoules (pieces/minute)	200		200	200	300		300	300	400		400	400	500		500	500
Output – vials (pieces/minute)	–	150	–	225	–	300	–	375
Filling pumps	4		4	4	6		6	6	8		8	8	10		10	10
Filling range (ml)	0.5 – 20	0.5 – 50	0.5 – 20	0.5 – 50	0.5 – 20	0.5 – 50	0.5 – 20	0.5 – 50
Ampoule diameter (mm)	10.75 – 22.5								10.75 – 22.5	10.75 – 22.5	10.75 – 22.5	10.75 – 22.5	10.75 – 22.5	10.75 – 22.5	10.75 – 22.5	10.75 – 22.5
Vial diameter (mm)	–	16 – 42.5	–	16 – 42.5	–	16 – 42.5	–	16 – 42.5
Standard voltage	400 V – 50 Hz								400 V – 50 Hz	400 V – 50 Hz	400 V – 50 Hz	400 V – 50 Hz	400 V – 50 Hz	400 V – 50 Hz	400 V – 50 Hz	400 V – 50 Hz
Installed power (kW)	18	20	18	20	18	20	18	20
Weight (kg)	1800	2000	1900	2100	2000	2200	2100	2300
Machine dimensions (mm)	A – 3300B – 1150C – 2020	A – 3600B – 1700C – 2020	A – 3300B – 1150C – 2020	A – 3600B – 1700C – 2020	A – 3300B – 1150C – 2020	A – 3600B – 1700C – 2020	A – 3650B – 1150C – 2020	A – 3950B – 1700C – 2020
