ENRobotic handling supports multiple ready-to-use container formats.

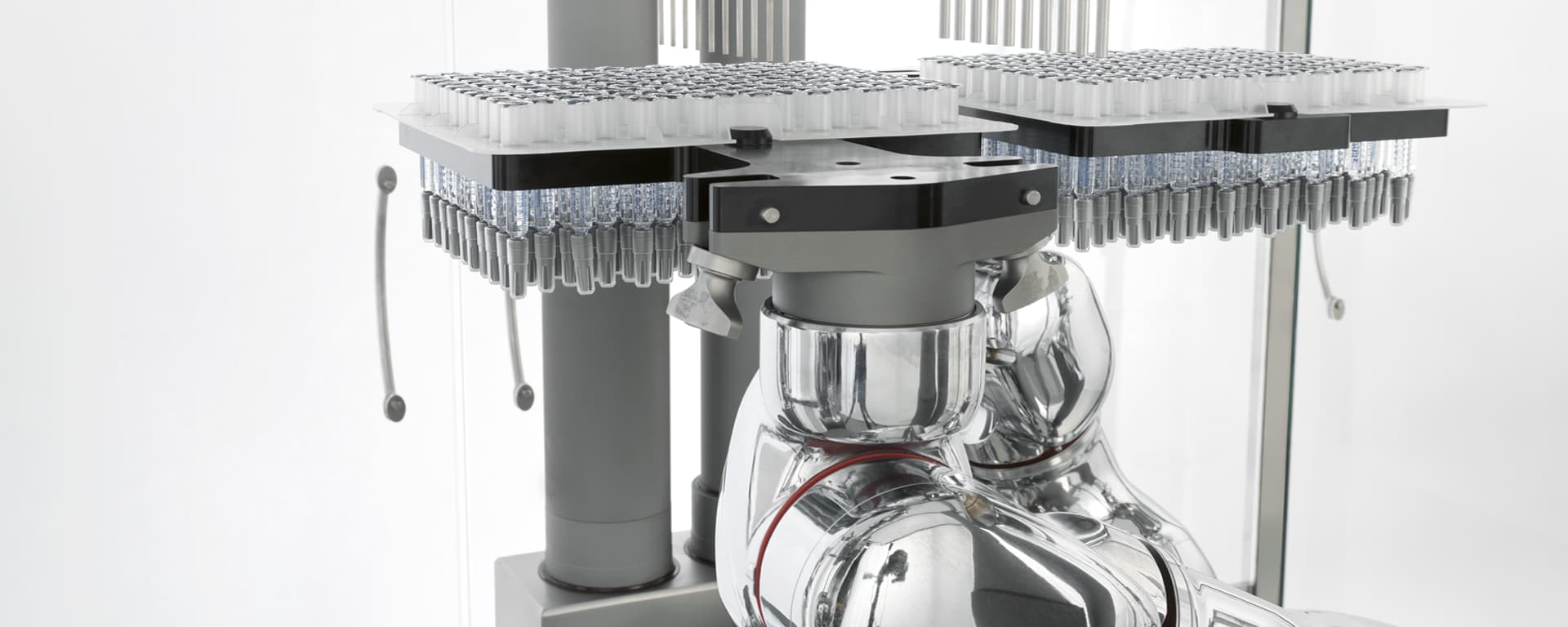

INJECTA 36
Aseptic FillingRobotic fill-finish for ready-to-use syringes, vials and cartridges. INJECTA 36 handles nested components with reduced manual intervention and output of up to 36,000 syringes per hour.
Designed around your process
Aseptic Filling
Specialised robots manage pre-sterilised containers in tubs without glass-to-glass contact. Weight-control options and automatic weighing-cell calibration support accurate filling. The machine can integrate with isolation technology and downstream inspection equipment.
Tailored to your application
Technology with local support
From choosing the right configuration to coordinating a quotation, the EZ GMP automation team connects your production requirements with the appropriate manufacturer specialists.
Tell us about your product, batch size, packaging format and facility. We’ll help define the next steps for your project in Vietnam.
INJECTA 36 — Highlights
Reduced operator intervention helps protect the aseptic process.
Automatic weight-cell calibration supports dosing control.
Downstream inspection can detect and reject individual nonconforming components.
Technical information
Swipe the table to compare models
| FEATURES | INJECTA FAMILY | ||
|---|---|---|---|
| INJECTA 36 | INJECTA 10 | INJECTA 6 | |
| Automation | Fully robotic automated | Fully robotic automated | Fully robotic automated |
| Footprint (mm) | 3,400 x 2,050 x 2,080 [L x W x H] | 7,200 x 4,500 x 2,080 [L x W x H] | 6,100 x 3,600 x 2,080 [L x W x H] |
| In-Process Control | 100% | 100% at full speed | 100% at full speed |
| RTU vial dimensions (mm) | Ø 16 – 42.4 | Ø 16 – 42.4 | Ø 16 – 42.4 |
| Vial output | up to 18,000 pcs/h | up to 12,000 pcs/h | up to 4,800 pcs/h |
| RTU syringe dimensions (ml) | 0.5 – 20 ml | 0.5 – 50 ml | 0.5 – 50 ml |
| Syringe output | up to 36,000 pcs/h | up to 12,000 pcs/h | up to 4,000 pcs/h |
| RTU cartridge dimensions (ml) | 1 – 20 ml | 1 – 20 ml | 1 – 20 ml |
| Cartridge output | up to 18,000 pcs/h | up to 10,800 pcs/h | up to 3,600 pcs/h |
| Suitable for high potent | Yes | Yes | Yes |
| Loading from depyrogenation tunnel | No | Yes | Yes |
Published manufacturer specifications. Actual output depends on product characteristics, format and selected configuration.
Manufacturer reference: IMA LIFE
Explore more from IMA LIFE
HYDRA
Linear container washing for injectable-product production. HYDRA adapts the cleaning cycle to the container and supports controlled transfer to the next stage of an aseptic line.
View product
BLUE GALAXY
Continuous dry-heat depyrogenation between container washing and filling. BLUE GALAXY tunnels combine controlled airflow and thermal zones for integration into aseptic production lines.
View product

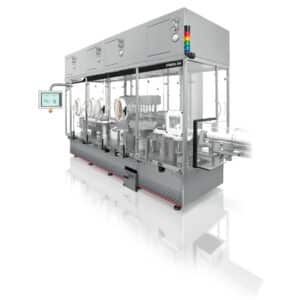

STERIFILL
Linear filling and sealing for open or closed ampoules. STERIFILL offers a compact, accessible layout with configurations for medium to high production rates.
View product
