ENWashing cycles are configured for the container and application.
HYDRA

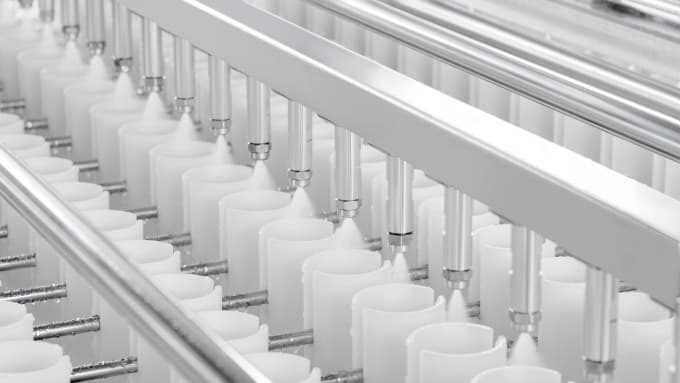

Container WashingLinear container washing for injectable-product production. HYDRA adapts the cleaning cycle to the container and supports controlled transfer to the next stage of an aseptic line.
Designed around your process
Container Washing
The series separates processing, utility circuits and mechanics. Guided containers remain stable during washing, while positive unloading helps prevent contaminated water from returning to cleaned vials. Ultrasonic treatment and automatic feeding can be specified where required.
Tailored to your application
Technology with local support
From choosing the right configuration to coordinating a quotation, the EZ GMP automation team connects your production requirements with the appropriate manufacturer specialists.
Tell us about your product, batch size, packaging format and facility. We’ll help define the next steps for your project in Vietnam.
HYDRA — Highlights
Segregated machine areas help limit cross-contamination.
Positive container unloading supports careful handling.
Automatic feeding and ultrasonic options support line requirements.
Technical information
Swipe the table to compare models
| TECHNICAL DATA HYDRA | ||||||
|---|---|---|---|---|---|---|
| Machine Model | Production pcs/hour | Number of baskets per row | Typical basket | Size range | ||
| Minimum mouth diameter (mm) | Maximum height (mm) | External diameter (mm) | ||||
| HYDRA 1000 9 A | 10,800 | 9 | A | 7 | 110 | 14-25 |
| HYDRA 1300 17 A | 20,400 | 17 | ||||
| HYDRA 1500 21 A | 25,200 | 21 | ||||
| HYDRA 1800 29 A | 34,800 | 29 | ||||
| HYDRA 2000 33 A | 39,600 | 33 | ||||
| HYDRA 1000 7 B | 8,400 | 7 | B | 7 | 110 | 16-36 |
| HYDRA 1300 13 B | 15,600 | 13 | ||||
| HYDRA 1500 17 B | 20,400 | 17 | ||||
| HYDRA 1800 23 B | 27,600 | 23 | ||||
| HYDRA 1000 6 C | 7,200 | 6 | C | 10 | 110 | 20-52 |
| HYDRA 1300 10 C | 12,000 | 10 | ||||
| HYDRA 1500 13 C | 15,600 | 13 | ||||
| HYDRA 1800 18 C | 21,600 | 18 | ||||
| HYDRA 2000 21 C | 25,200 | 21 | ||||
| HYDRA 2000 21 C-S | 25,200 | 21 | ||||
| HYDRA 1000 5 D | 4,500 | 5 | D | 10 | 180 | 32-66 |
| HYDRA 1300 8 D | 7,200 | 8 | ||||
| HYDRA 1500 10 D | 9,000 | 10 | ||||
| HYDRA 1800 14 D | 12,600 | 14 | ||||
| HYDRA 1000 4 I | 3,600 | 4 | I | 10 | 180 | 50-80 |
| HYDRA 1300 7 I | 6,300 | 7 | ||||
| HYDRA 1500 9 I | 8,100 | 9 | ||||
| HYDRA 1800 11 I | 9,900 | 11 | ||||
| Production data and size ranges refer to standard machines with a single size of washing baskets. Additional container sizes can be processed by replacing the baskets. | ||||||
Published manufacturer specifications. Actual output depends on product characteristics, format and selected configuration.
Manufacturer reference: IMA LIFE
