PREXIMA

Name: PREXIMA
Brand: IMA ACTIVE

Tableting

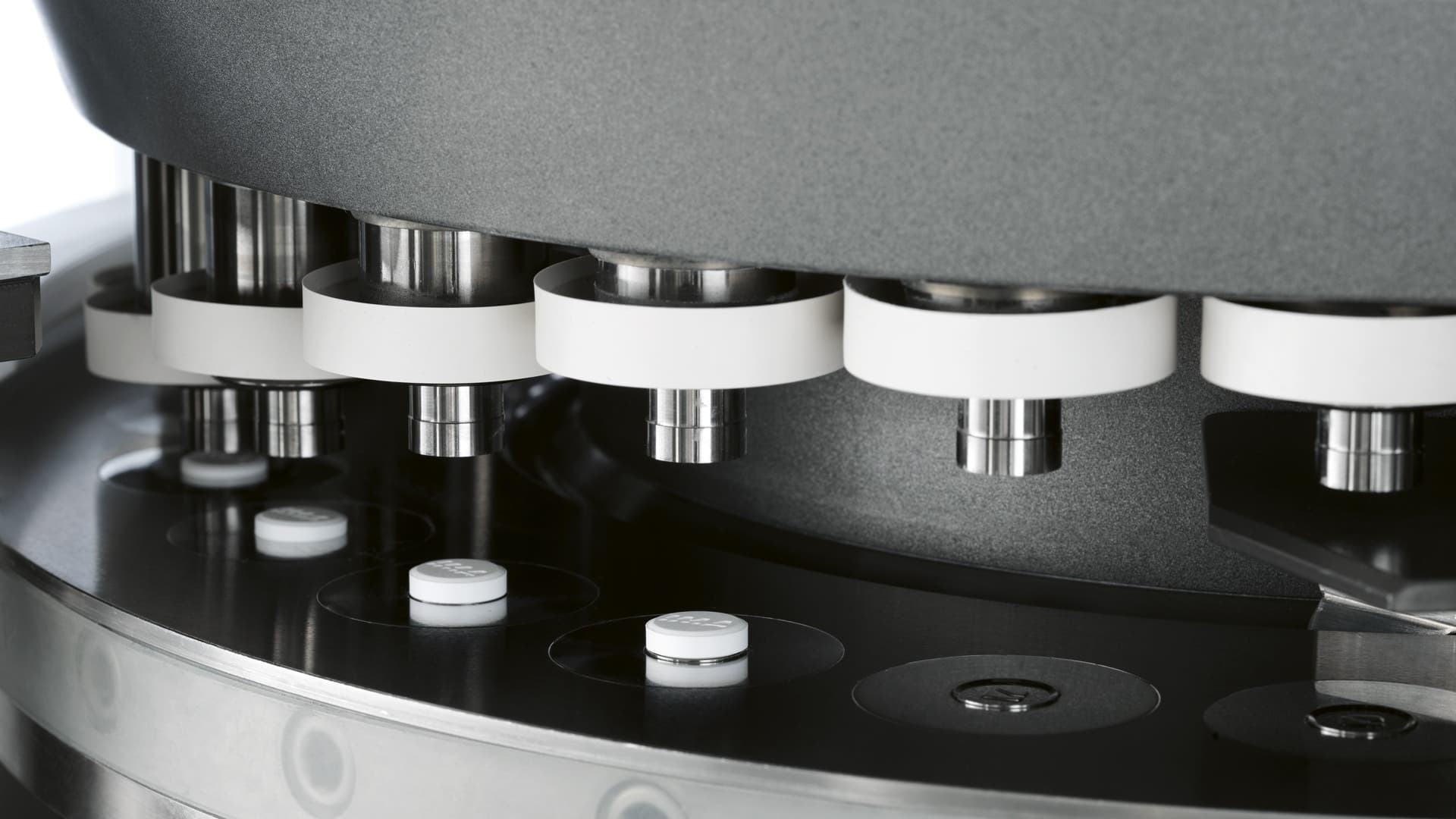

Precise tablet compression for development, scale-up and full production. PREXIMA brings accessible tooling, isolated processing and consistent tablet weight and hardness to demanding solid-dose operations.

Enquire

Designed around your process

Tableting

Choose from PREXIMA 80, 300 and 800 to match your production stage. The range combines controlled compression with straightforward inspection and cleaning. Guided turret changes help your team prepare the next batch, while the machine structure and lubrication system support reliable day-to-day operation.

Tailored to your application

Technology with local support

From choosing the right configuration to coordinating a quotation, the EZ GMP automation team connects your production requirements with the appropriate manufacturer specialists.

Tell us about your product, batch size, packaging format and facility. We’ll help define the next steps for your project in Vietnam.

PREXIMA — Highlights

Three platforms for laboratory, medium and high-volume production.

Separated processing area helps protect the product and simplify cleaning.

Guided turret removal supports efficient format changes.

Sound insulation and vibration control improve the working environment.

Technical information

Swipe the table to compare models

PREXIMA — Specifications
PREXIMA 80 technical data
Turret Design	Tooling Type	Max Tablet Ø	Number of press stations	Maximum output (Tab/h)
Die-Table	EU-D/TSM-D/EU-441	25 mm	13	66,300
	EU/TSM-BB dies	16 mm	16	81,600
	EU/TSM-BBB dies	13 mm	19	96,900
	EU/TSM-BBBS dies	11 mm	19	96,900
	IMA 8	11 mm	26	132,600

PREXIMA — Specifications 2
PREXIMA 300 technical data
Turret Design	Tooling Type	Max Tablet Ø	Number of press stations	Maximum output (Tab/h)
Die-Table	EU-D/TSM-D/EU-441	25 mm	27	194,400
	EU/TSM-BB dies	16 mm	33	237,600
	EU/TSM-BBB dies	13 mm	41	295,200
	EU/TSM-BBBS dies	11 mm	41	295,200
	IMA 8	11 mm	55	396,000
Segments	EU-D/TSM-D	25 mm	33	237,600
	EU-441	25 mm	30	216,000
	EU-B/TSM-B	19 mm	42	302,400
	IMA 8	11 mm	54	388,800

PREXIMA — Specifications 3
PREXIMA 800 technical data
Turret Design	Tooling Type	Max Tablet Ø	Number of press stations	Maximum output (Tab/h)
Die-Table	EU-D/TSM-D/EU-441	25 mm	53	572,400
	EU/TSM-BB dies	16 mm	65	702,000
	EU/TSM-BBB dies	13 mm	81	874,800
	EU/TSM-BBBS dies	11 mm	81	874,800
Segments	EU-D/TSM-D	25 mm	65	702,000
	EU-441	25 mm	60	648,000
	EU-B/TSM-B	19 mm	85	918,000
	IMA 8	11 mm	105	1,260,000
