ENSeveral process stages take place inside one enclosed bowl.
ROTO CUBE
GranulationMix, granulate and vacuum-dry in one sealed vessel. ROTO CUBE limits product transfers and supports contained processing from powder loading through to dry granule discharge.
Designed around your process
Granulation

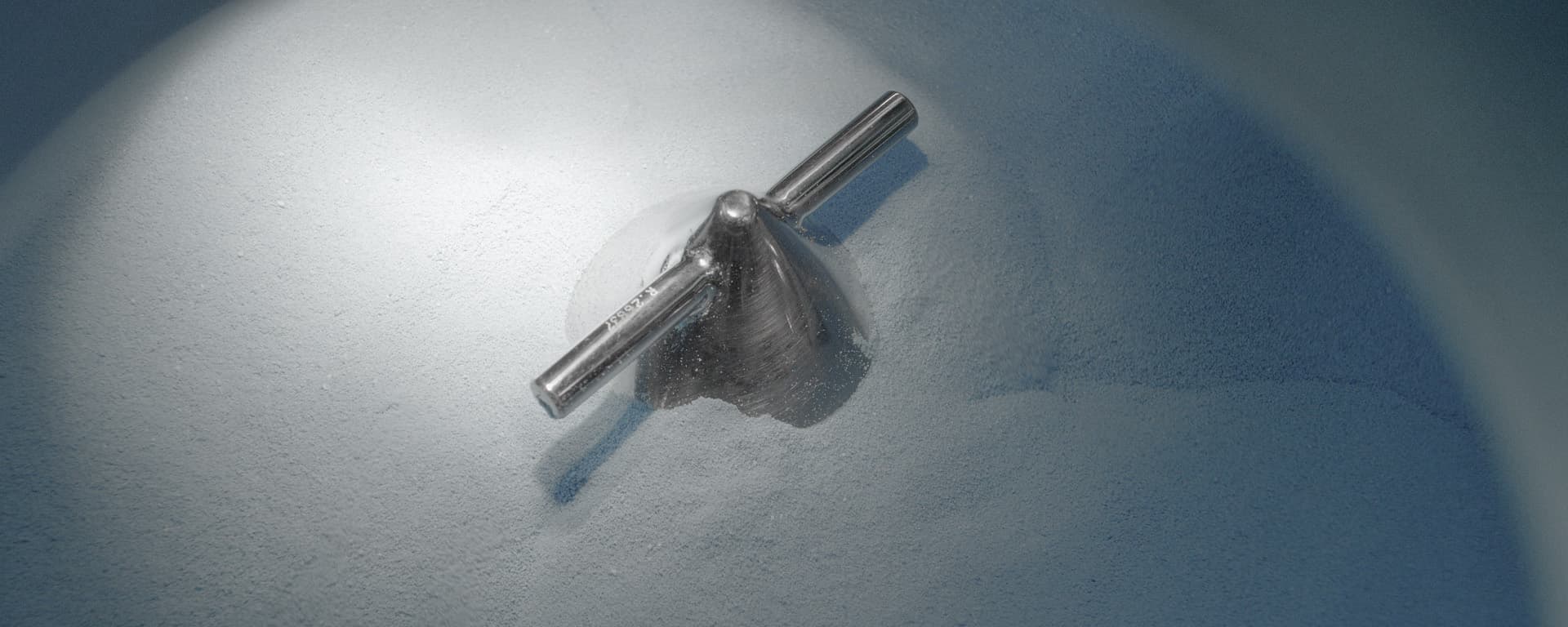

A tilting bowl improves heat exchange and helps prevent material from sticking during drying. Gas stripping assists moisture removal under vacuum. The single-pot approach is particularly useful where product containment, solvent handling and cleanability are central to the process.
Tailored to your application
Technology with local support
From choosing the right configuration to coordinating a quotation, the EZ GMP automation team connects your production requirements with the appropriate manufacturer specialists.
Tell us about your product, batch size, packaging format and facility. We’ll help define the next steps for your project in Vietnam.
ROTO CUBE — Highlights
Bowl tilting increases the surface available for heat transfer.
Gas stripping supports efficient vacuum drying.
Laboratory and production sizes support development and scale-up.
Technical information
Swipe the table to compare models
| ROTO CUBE technical data | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model | 12 | 30 | 60 | 120 | 300 | 600 | 900 | 1,200 | 1,500 |
| Recommended batch size range (l) | 3-9 | 7-22 | 15-45 | 30-90 | 75-225 | 150-450 | 225-675 | 300-900 | 375-1,125 |
| Product quantity (l) | 4-8 | 10-20 | 20-40 | 40-80 | 100-200 | 200-400 | 300-600 | 400-800 | 500-1,000 |
| Impeller speed (rpm) | 20-597 | 20-434 | 20-347 | 10-277 | 10-205 | 10-163 | 10-142 | 10-130 | 10-122 |
| Chopper speed (rpm) | 700-1,500 | 700-1,500 | 700-1,500 | 700-1,500 | 700-1,500 | 700-1,500 | 700-1,500 | 700-1,500 | 700-1,500 |
| Machine dimensions | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A (mm) | 1,400 | 1,450 | 2,200 | 2,360 | 2,900 | 3,100 | 3,500 | 3,500 | 4,300 | ||||||||
| B (mm) | 2,020 | 2,020 | 2,020 | 2,400 | 2,400 | 2,400 | 2,680 | 2,880 | 3,380 | 3,380 | 3,380 | 4,300 | |||||
| C (mm) | 770 | 920 | 1,300 | 1,375 | 1,750 | 2,000 | 2,130 | 2,250 | 4,300 | ||||||||
| D (mm) | 2,610 | 2,760 | 3,570 | 3,650 | 4,330 | 4,600 | 4,700 | 4,860 | 4,300 | ||||||||
| E (mm) | 1,075 | 1,075 | 1,075 | 1,660 | 1,660 | 1,660 | 2,000 | 2,000 | 2,000 | 2,200 | 2,200 | 2,200 | 4,300 | ||||
| F (mm) | 1,400 | 1,400 | 1,400 | 2,450 | 2,550 | 3,000 | 3,700 | 3,950 | 4,100 | 4,300 | |||||||
Published manufacturer specifications. Actual output depends on product characteristics, format and selected configuration.
Manufacturer reference: IMA ACTIVE
