ENSelect ADAPTA 7, 21, 50, 100 or 200 to suit the required output.
ADAPTA

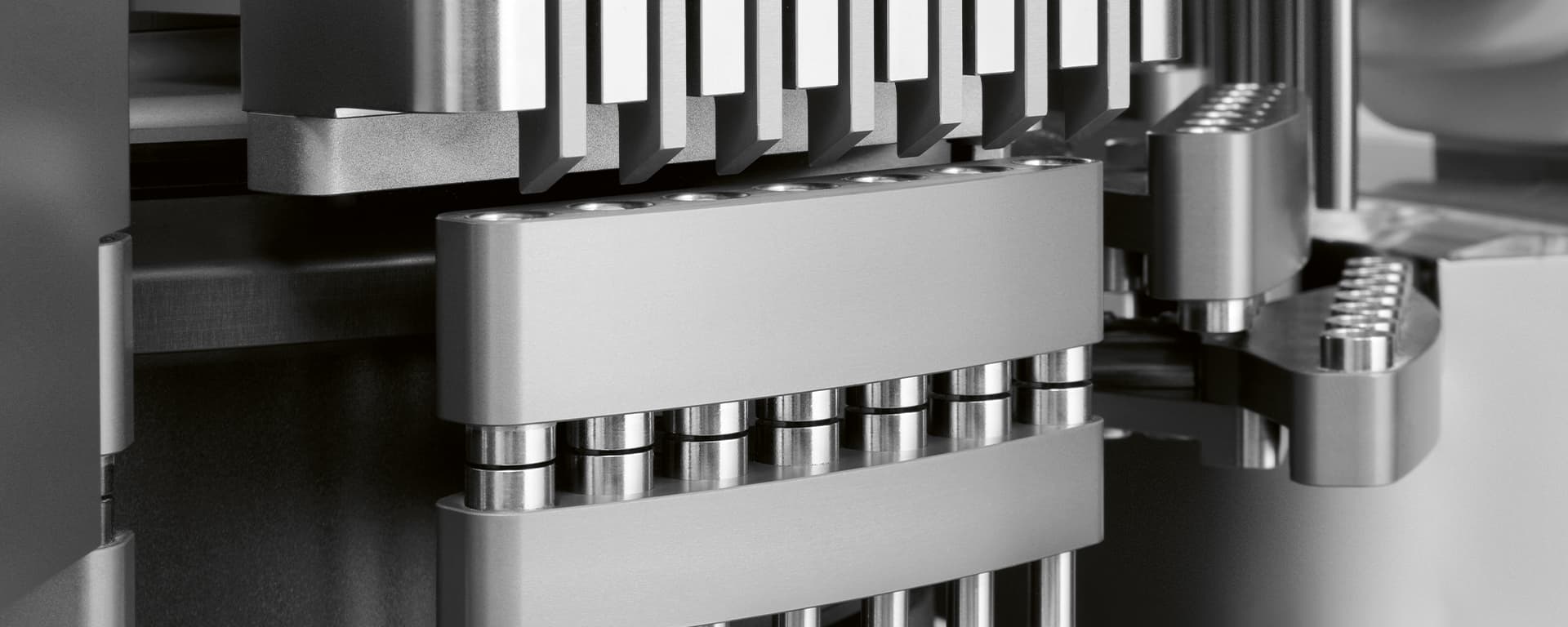

Capsule FillingA flexible capsule-filling platform for powders, pellets, tablets and product combinations. ADAPTA scales from development batches to high-volume manufacturing, with dosing and weight-control options tailored to your formulation.
Designed around your process
Capsule Filling
The ADAPTA family covers 7,000 to 200,000 capsules per hour across five models. Interchangeable dosing groups support changing formulations, including low-dose powders for inhalation. Accessible processing areas simplify cleaning, while optional gravimetric checks help monitor fill weights and reject individual capsules outside specification.
Tailored to your application
Technology with local support
From choosing the right configuration to coordinating a quotation, the EZ GMP automation team connects your production requirements with the appropriate manufacturer specialists.
Tell us about your product, batch size, packaging format and facility. We’ll help define the next steps for your project in Vietnam.
ADAPTA — Highlights
Interchangeable dosing groups accommodate different products and combinations.
Configurable in-process weight control supports dosing consistency.
A no-fill bypass reduces product loss when a capsule body is missing.
Accessible components simplify inspection, cleaning and maintenance.
Technical information
Swipe the table to compare models
| ADAPTA technical data | |||
|---|---|---|---|
| Model | 7 | 21 | 50 |
| Maximum output (capsules/hour) | 7,000 | 21,000 | 50,000 |
| Number of capsules per cycle | 1 | 3 | 7 |
| Capsule size | 5-000, DB E-AA | 5-000, DB E-AA | 5-000, DB E-AA |
| Maximum installed power (KW) | 11 | 11 | 12.5 |
| Aspiration | 3,200 l/m – 2,400 mmH2O | 3,200 l/m – 2,400 mmH2O | 4,800 litres/minute – 3,100 mm H2O |
| Compressed air | 100 l/m – 6 bar | 100 l/m – 6 bar | 100 l/min – 6 bar |
| Vacuum | 100 m3/h – 3 mbar (abs.) | 100 m3/h – 3 mbar (abs.) | 100 m3/h- 3 mbar (abs.) |
| Standard voltage | 400 V – 50 Hz | 400 V – 50 Hz | 400 V 50 Hz |
| Weight (kg) | 1,200 | 1,250 | 1,300 |
| Model | 7 | 21 | 50 |
| Adapta 100 technical data | Adapta 200 technical data | |
|---|---|---|
| Maximum output (capsules/hour) | 100,000 | 200,000 |
| Number of capsules per cycle | 12 | 24 |
| Capsule size | 5 – 00EL (000*), DB E – A (AA*) | 5 – 00EL (000*), DB E – A (AA*) |
| Maximum installed power (kW) | 17 | 18 |
| Aspiration | 9,500 litres/minute – 3,200 mm H2O | 9,500 litres/minute – 3,200 mm H2O |
| Compressed air | 115 litres/minute – 6 bar | 115 litres/minute – 6 bar |
| Vacuum | 100 m³/h – 3 mbar (abs.) | 165 m³/h – 3 mbar (abs.) |
| Standard voltage | 400 V – 50 Hz | 400 V – 50 Hz |
| Weight (kg) | 2,150 | 2,500 |
Published manufacturer specifications. Actual output depends on product characteristics, format and selected configuration.
Manufacturer reference: IMA ACTIVE (1) · IMA ACTIVE (2)
