ENRotating expansion chamber improves filter access.

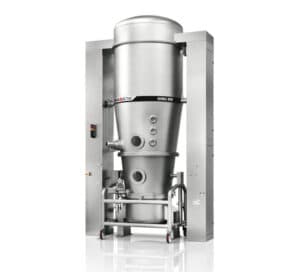

GHIBLI
Fluid Bed ProcessingA fluid-bed processor for drying, granulation and pellet coating. GHIBLI combines containment capability with accessible filters and flexible product-bowl arrangements.
Designed around your process
Fluid Bed Processing
The rotating expansion chamber opens access to filters for inspection and replacement. Spray equipment and air distribution can be selected for the formulation, while containment and discharge options help fit the machine into the production environment.
Tailored to your application
Technology with local support
From choosing the right configuration to coordinating a quotation, the EZ GMP automation team connects your production requirements with the appropriate manufacturer specialists.
Tell us about your product, batch size, packaging format and facility. We’ll help define the next steps for your project in Vietnam.
GHIBLI — Highlights

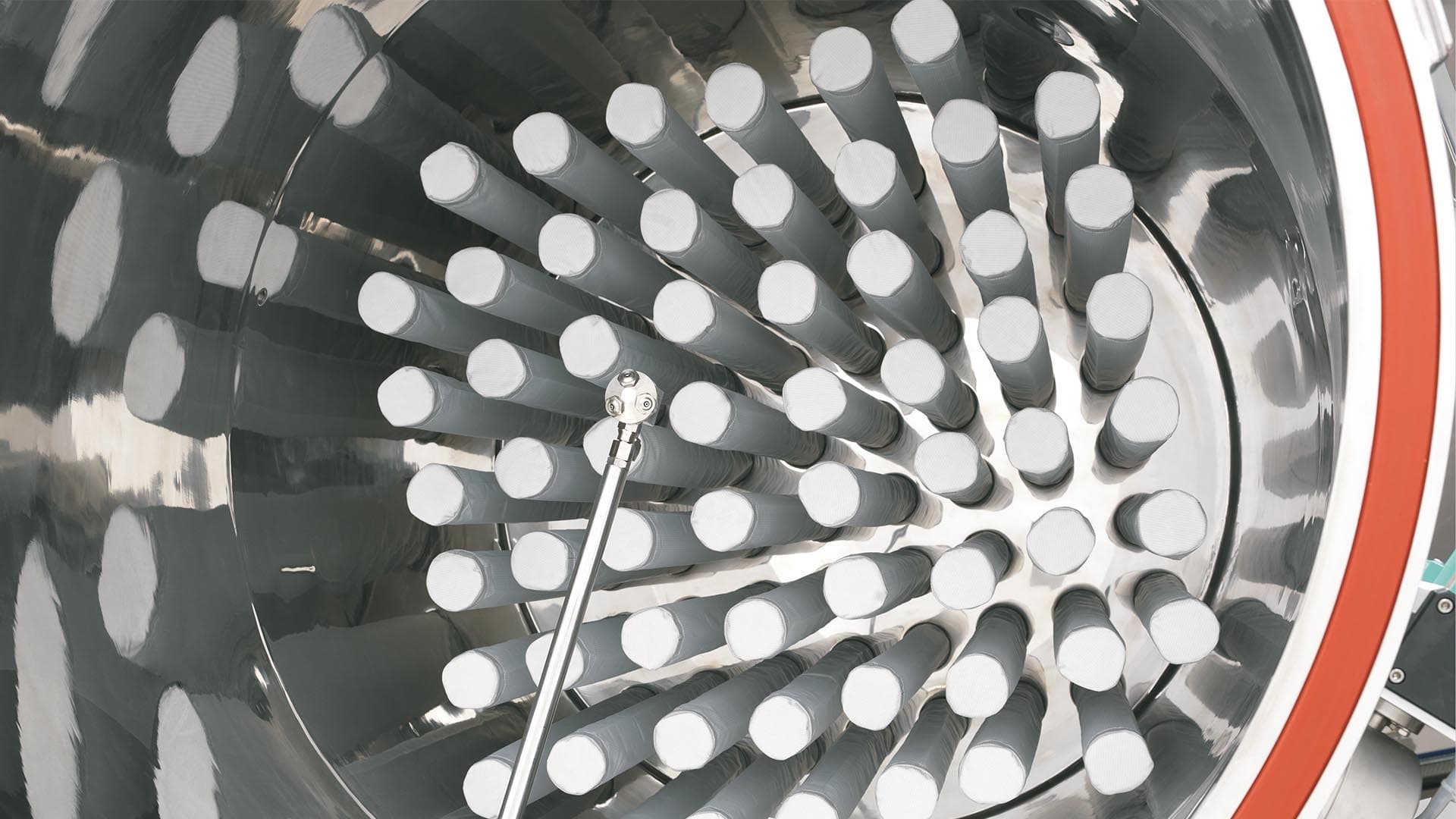

Bag, pleated and stainless-steel filter options are available.
Configurable spraying supports granulation and coating.
Gravity discharge through the floor can be specified.
Technical information
Swipe the table to compare models
| GHIBLI technical data | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model | 25 | 50 | 100 | 150 | 200 | 300 | 400 | 700 | 1000 |
| Recommended batch size (l) | 66 | 116 | 320 | 442 | 480 | 668 | 770 | 1,173 | 1,400 |
| Roto Mix inline (l) | 60 | 120 | 300 | 600 | 600 | 900 | 900 | 1,200 | 1,500 |
| A (Ø mm) | 600 | 700 | 900 | 1,250 | 1,250 | 1,515 | 1,515 | 1,820 | 1,820 |
| B (mm) | 555 | 665 | 770 | 970 | 1,060 | 1,245 | 1,250 | 1,465 | 1,780 |
| C (mm) | 2,200 | 2,500 | 2,900 | 3,165 | 3,465 | 3,850 | 4,150 | 4,980 | 5,680 |
| D (mm) | 1,170 | 1,295 | 1,415 | 1,425 | 1,480 | 1,650 | 1,800 | 2,290 | 2,335 |
| E (mm) | 1,460 | 1,460 | 1,585 | 2,530 | 2,530 | 2,785 | 2,785 | 3,270 | 3,270 |
| F vertical rupture disc (mm) | 2,535 | 2,840 | 3,300 | 3,600 | 3,900 | 4,370 | 4,680 | 5,780 | 6,480 |
| G horizontal rupture disc (mm) | 2,660 | 2,960 | 3,420 | 3,765 | 4,065 | 4,540 | 4,890 | 5,890 | 6,600 |
Published manufacturer specifications. Actual output depends on product characteristics, format and selected configuration.
Manufacturer reference: IMA ACTIVE
