IMILL

Name: IMILL
Brand: IMA ACTIVE

Milling

Controlled particle-size reduction for wet and dry materials. IMILL cone mills offer adjustable screens and impeller speeds for integration into pharmaceutical processing lines.

Enquire

Designed around your process

Milling

Select the screen geometry and operating speed to suit your product. The mill can operate independently or as part of another process, with gravity or vacuum feeding according to the installation. Capacity depends on the material, screen and required particle distribution.

Tailored to your application

Technology with local support

From choosing the right configuration to coordinating a quotation, the EZ GMP automation team connects your production requirements with the appropriate manufacturer specialists.

Tell us about your product, batch size, packaging format and facility. We’ll help define the next steps for your project in Vietnam.

IMILL — Highlights

Wet and dry products can be processed on the same platform.

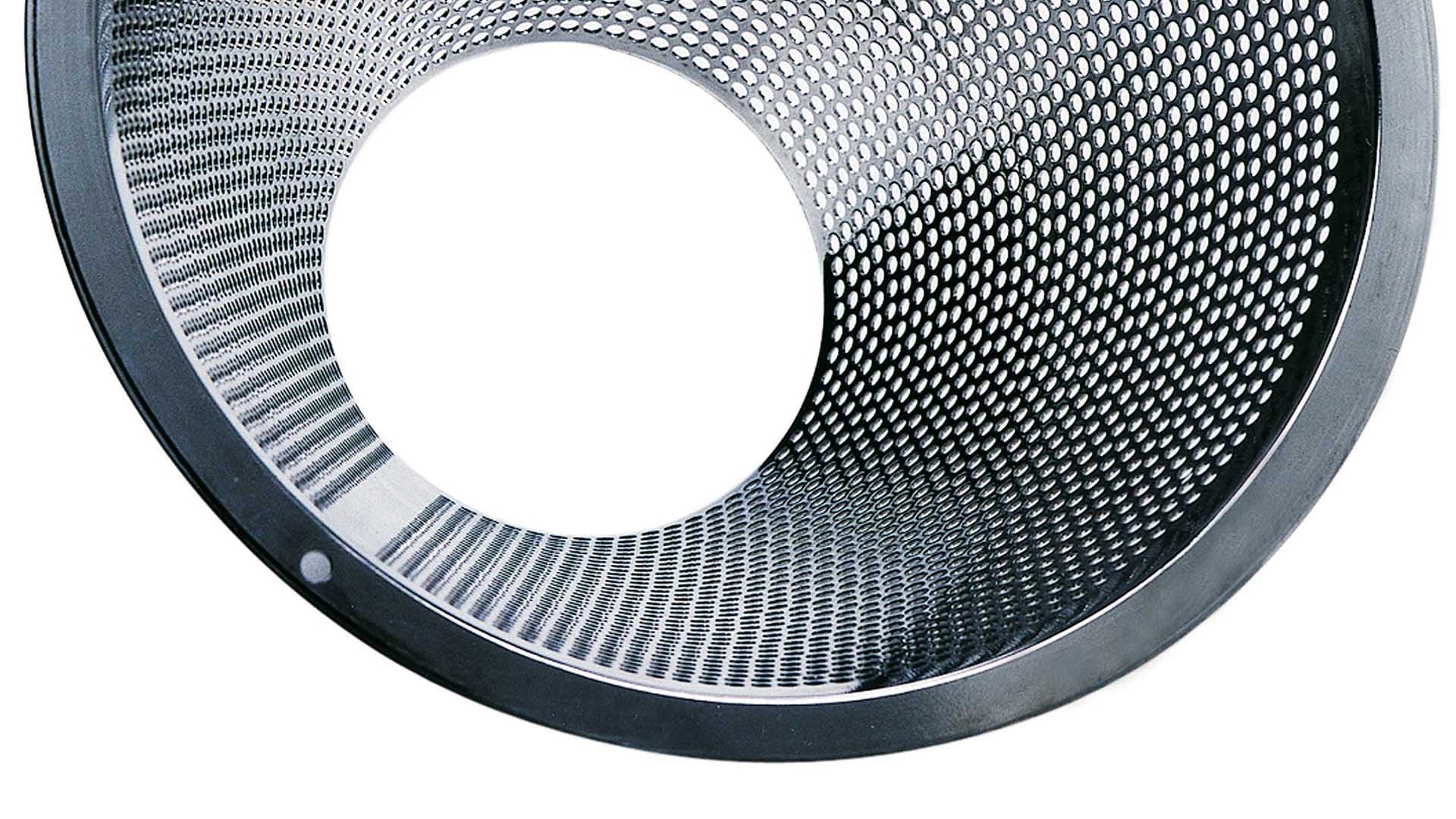

Interchangeable screens help tune the particle-size result.

Standalone and integrated configurations are available.

An ATEX-certified option is available for relevant applications.

Technical information

Swipe the table to compare models

IMILL — Specifications
Model	IMILL 5	IMILL 8	IMILL 12
Capacity (kg/h)*	400	2,000	4,000
Motor (kW)	1.5	4.0	5.5
Speed range (rpm)	300-2,600	300-2,200	300-1,500

IMILL — Specifications 2
A (mm)	180	330	500
B (mm)	132.5	290	414
C (mm)	125.8	199.7	301.5
D (mm)	222	369.5	420
* Capacity can vary depending on product characteristics, particle size distribution, screen size and installation context.
