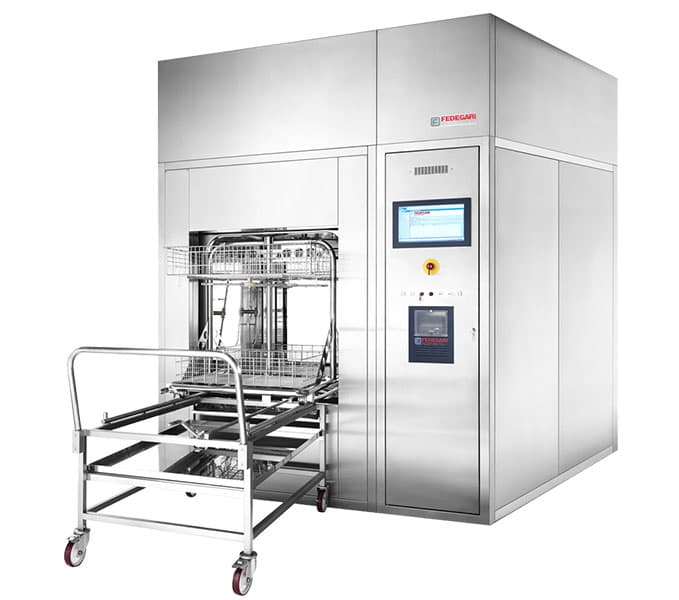

Washing and dryingSteam-assisted washing for pharmaceutical machine parts, tools and glassware, with trolleys designed around the actual load.
Designed around your process
Washing and drying
FWS injects steam directly into the chamber to soften greasy or sticky residues and heat the wash water. Filtered compressed air increases the mechanical action during washing and rinsing. Load-specific draining trolleys, Thema4 process control and H14 HEPA-filtered hot-air drying complete the system.
Tailored to your application
Technology with local support
From choosing the right configuration to coordinating a quotation, the EZ GMP automation team connects your production requirements with the appropriate manufacturer specialists.
Tell us about your product, batch size, packaging format and facility. We’ll help define the next steps for your project in Vietnam.
FWS — Highlights
Load-specific washing trolleys.
H14 HEPA-filtered hot-air drying.
Technical information
Swipe the table to compare models
| Parameter | Details |
|---|---|
| Process | Steam-assisted washing |
| Chamber material | AISI 316L |
| Steam delivery | Direct chamber injection; optional steam generator |
| Wash/rinse air filtration | 0.22 µm Pall vent filter |
| Final drying | Hot air through an H14 HEPA filter |
| Hydraulic components | AISI 316L with hygienic finish |
| Door options | Hinged or sliding glass door with AISI 316L frame |
| Load carriers | Modular, load-specific trolleys with dedicated drainage points |
| Process controller | Thema4 |
| Alarms | Audible and visual alarms; internal LED changes colour |
Published specifications are taken from Fedegari’s product page. Chamber sizes, options and process results depend on the selected configuration and load. Confirm requirements with EZ GMP; older brochures may describe different configurations.
Manufacturer reference: FEDEGARI
